Physiotherapy Equipments (Electrotherapy Equipments) |
 |
|
We have quality products in Electro Therapy equipments. All our models are efficient and display quality in Physiotherapy Equipments. |
|
|

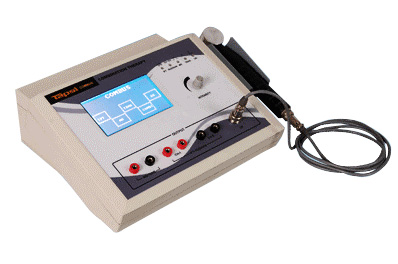

AMP-03CM13 : Combination Therapy Unit |
|
 |
FEATURES:
- Touch screen Operated panel
- TPS 209 is very simple and easy to operate
- Complete computerized unit.
- Compact design, powerful performance
FIVE OUTPUT SELECTIONS:
- Interferential
- Russian
- Muscle Stimulator
- TENS
- Ultrasound Therapy
INPUT SUPPLY: 230V AC, 50 Hz
SIZE: L14” X W13”X H5”
WEIGHT: 8.5 Kg. Approx.
TECHNICAL SPECIFICATIONS:
COMBO WAVEFORMS:
- Ultrasound / IFT / Russian / MS / TENS
ULTRA SOUND THERAPY:
- Ultra sound frequency 1 MHz + 10%
- Max intensity 2 Watt/cm²
INTEFERENTIAL:
- 4 KHz, 2 KHz Carrier freq., Base, Sweep, Form, Vector, 2 pole, 4 pole
RUSSIAN :
MUSCLE STIMULATOR:
- Four types of currents (Galvanic, Interrupted Galvanic, Faradic, Surge Faradic)
TENS:
- Pulse width 400 micro second & freq. 50 Hz
- Constant, Burst
TIMER:
- 1 to 30 Minutes treatment timer
STANDARD ACCESSORIES:
- Four electrode cables
- Two size rubber pads
- One pair plate electrodes
- Best quality Velcro straps
- Gel
|
|
|
| |
|

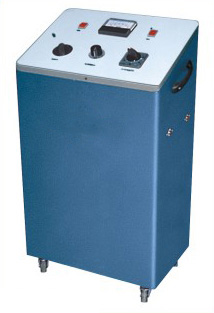

AMP-032573 : SHORTWAVE MEDICAL DIATHERMY-500w. (with Fan) |
|
 |
High power medical diathermy incorporating a high power transmitting oscillator Valve & solid state rectifiers; provides R.F. power upto 500 watts for
intense deep tissue heating with out discomfort at the surface. Housed in an elegant MOBILE CABINET & designed to meet heavy work load in a hospital.
SPECIFICATION :
- Frequency. : 27.12MHz.
- Output. : Continous, maximum: 500 watts.
- Intensity. : Adjustable, in 5 steps.
- Electrodes. : One pair Condenser pads with felt spacer & cover. Size: 15cm x 25cm.
- Tuning. : Manual, with tuning control knob.
- Timer. : 30 minutes timer with Auto-cut.
- Cooling. : With 10cm dia. instrumental fan.
- Voltage. : 220-240V.
- Accessories. : A. One, pair condenser Pads cable. B.Spare Fuses. C. One, Shortwave Test Tube. D. three, Velcro Strap to tie/hold condenser pads with the body.
Note : VALVE OF SWD-500 CARRIES NO GUARANTEE AS IT IS JUST LIKE AN ELECTRIC BULB THAT MAY FUSE ANY TIME. MUST USE VOLT. STABILISER WITH UNIT.
|
|
|
| |
|
AMP-032592 : ULTRASOUND THERAPY UNIT (Digital, Pre Programmed) |
|
 |
Micro-Processor based, computerized ultrasound therapy unit gives you a choice of treatment modes Continuous or in Three Pulsed wave forms. The compact digital unit with built in timer and user friendly control panel gives a wide range of treatment situations.
SPECIFICATION :
- PROGRAMME. : 24 Preset Programmes.
- U.SOUND FREQUENCY. : 1 MHz.
- OUTPUT MODE. : Continuous & Pulsed.
- VARIABLE PULSED FREQUENCY. : 16Hz, 48Hz, 99Hz.
- INTENSITY. : Continuous Mode 0 to 2 watts/cm sq., Pulsed Mode. 0 to 3 watts/cm sq.
- TREATMENT HEAD. : One.
- EFFECTIVE AREA of RADIATION : 5 sq. centimeters.
- TREATMENT TIMER. : 1 to 60 minutes, with buzzer at the end of time.
- ACCESSORIES. : Ultra-sound Gel bottle.
- POWER REQUIRED : 220V.AC, 50 Hz,
|
|
|
| |
|
AMP-032601 : MUSCLE STIMULATOR WITH TENS (Portable) |
|
 |
The IC based Diagnostic cum Therapeutic unit, suitable for taking S.D. Curve is a marvel of electronics. The combination unit produces five different types of stimulating current i.e. Tens, Galvanic, Interrupted Galvanic, Faradic & Surged Faradic for S.D. Curve plotting and therapeutic use Output is smoothly adjustable from 0-135 volts.
The stimulating current outputs are as under :
- GALVANIC. : Continuous well filtered D.C upto 135 volts for a maximum of 0-75mA load.
- INTERRUPTED-GALVANIC : Pulse duration -0.01, 0.03, 0.1, 0.3, 1, 3, 10, 30, 100, 300 m secs. Frequency 6, 18, 30 per minute 1, 3, 5, 10, 30, 50, 100 per sec.
- SURGED FARADIC. : Faradic pulse of 0.6 m sec duration, Contraction duration: 2 - 4 seconds.
- FARADIC : Comprises of 80 pulse per second, each pulse of 0.6 ms width.
- ACCESSORIES :
: Inactive & Active rubber Electrodes.
: 3, Ball tip Electrode with Handle.
: 1 pair, Electrodes Wires.
|
|
|
| |
|
AMP-032602 : MUSCLE STIMULATOR Mini (I.G/S.F. & Tens) |
|
 |
A mini portable muscle stimulation unit that delivers Tens, Interrupted Galvanic and Surged Faradic currents for therapeutic use. Unit comes in a carrying case with following accessories:
- Electrodes :
: 2, metal plate with cover.
: 1, Pen Electrode.
: One pair electrode leads.
- Fixing Straps : 2, for fixation of electrodes.
|
|
|
| |
|
AMP-032615 : INTERFERENTIAL THERAPY UNIT (Digital, PreProgramed) |
|
 |
Interferential current stimulation is effective upon the Nerves, Muscles, Arteries and Veins. The current is able to penetrate tissues to a much greater depth, with a soft stimulative effect, thus assuring an exclusive range of application.
SPECIFICATIONS :
- PROGRAMME. : 20 Variable Programmes.
- MEDIUM FFREQUENCY. : 2 KHz and 4 KHz.
- BASE AMF : 0 to 100 Hz.
- SWEEP AMF : 0 to 150 Hz.
- SPECTRUM (Form). : 3 Position : Rectangular 1/1 S, Trapezoidal 1/5 S, Linear 6/6 S.
- THERAPY MODE. :
: TWO pole IFT.
: FOUR pole IFT.
: FOUR pole, 45 deg. Vector IFT.
: FOUR pole, 90 deg. Vector IFT.
- INTENSITY. : 0 - 60 mA continuously adj.
- INTENSITY BALANCE. : Available. Equalize current between Two channels.
- TIMER. : 1 to 60 minutes. digital.
- BUZZER. : Audio buzzer at the end of Treatment Time.
- ACCESSORIES. : Gel=One bottel. Velcro straps to hold/tie pads =2, 4Big & 4small rubber electrode with lint cover, 1 set,electrodes wire
- POWER SUPPLY. : 230V AC, 50 Hz.
|
|
|
| |
|
AMP-032631 : TRANSCUTANEOUS NERVE STIMULATOR (Tens Digital) |
|
 |
Imported, light weight, pocket model, Two channel, Digital Tens, works on three AA battery cells. It utilizes solid state circuit to provide maximum reliability and stability.
SPECIFICATIONS :
- LCD display & digital operation.
- Intensity adjustable to0-9.
- Two channel output.
- Preset 10 minutes Timer.
- Large buttons for easy operation.
- Maximum output 200 Hz for servere pain.
|
|
|
| |
|
 |
|
|
